3PKT100408R Carbide Milling Inserts Balzers Coating Hard Metal of Tool Holder 3PKT100404

Products Description

​

Advantages:

1. 100% Virgin Raw Material
2. Imported German Dorst Machine
3. High finishing and high wear-resistant
4. Selected Material
5. Small thermal expansions
6. Great performance
7. Sharping edges
8. Wide range of application

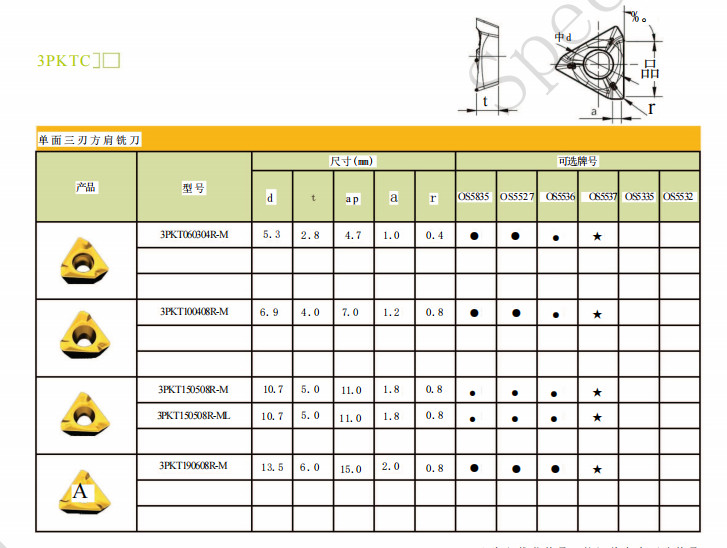

Specification:

Application:

Our 3PKT type milling inserts are adopt imported Dorst machine to ensure good stability of cutting edges and high precision, it made of imported base materials with advanced high precision, which enhances the quality of the inserts, high hardness, great ductility, high finishing, thick coating, stable performance and improves the processing efficiency. The special coating process, fine and smooth, no drip marks, reduce surface friction, so that the cutting resistance is smaller. And the milling inserts are sharp and thick, so that the cutting speed is fast but not easy to break. It also has wide range of application, applicable to step surface processing, model profiling processing, grooving cutting, slope processing, and could to be processed alloy steel, P20 steel, 45# steel, soft steel, carbon steel, medium steel, stainless steel, cast iron, titanium alloy, and etc.,

please send me your requirements to us, we will recommend the best suitable grade.

Products Detail:

• Ultrafine grain tungsten steel raw materials
• Reduce resistance, smooth cutting and smooth chip removal
• Strong deformation resistance & longer services life
• Non-stick cutter with high durability

Production Line

Advanced equipments to ensure steady quality

1. We use imported German Dorst machine to produce, which with high precision and smooth surface.

Insepction conducted in all production procedure

2. Each piece will have 3 times quality check before shipment, to make sure stable quality.

Notes:

1. Before installing the 3PKT inserts, please confirm the performance and use of operation table, and the cutting direction indicated by the arrow of the blade is consistent with the rotation direction of the operation table. Please pay attention to don't install in the opposite direction. The wrong installation direction may cause the blade serrations to fall off, in case of accidents.

2. After installation, please confirm whether the center hole of the 3PKT milling inserts is firmly fixed on the flange of the saw table. If necessary, put on a spacer, then push it lightly by hand to confirm whether the blade rotates eccentrically.

3. When using the 3PKT carbide milling inserts, do not exceed the specified high speeds.

4. When not using, please hang the 3PKT carbide milling blades upright on a dry rack.

FAQ:

1. Flank wear: (This is a common form of failure)
Effect: Gradual change in workpiece size or loss of surface finish
Reason: Linear speed is too high, and reach to service life of the tool
Measures: Adjust the processing parameters, such as reducing the linear speed and changing to inserts with higher wear resistance

2.Breakdown problem: (bad form of failure)
Effects: Sudden changes in workpiece size or surface finish, causes sparks and surface burrs
Reason: Inappropriate setting of processing parameters, inappropriate selection of blade material, poor workpiece rigidity, or unstable blade clamping
Measures: Check whether the parameter settings are reasonable, and select the corresponding tool according to the workpiece

3. Severely broken: (this is a very bad form of failure)
Effect: sudden and unpredictable occurrence, resulting in scrapped tool holder material or defective workpiece and scrapped
Reason: The processing parameters are set incorrectly, the vibration tool workpiece or the insert is not installed in place
Measures: Set reasonable processing parameters. The feed rate and cutting should be reduced, the corresponding machining insert should be selected, and the rigidity of the workpiece and insert should be strengthened.
